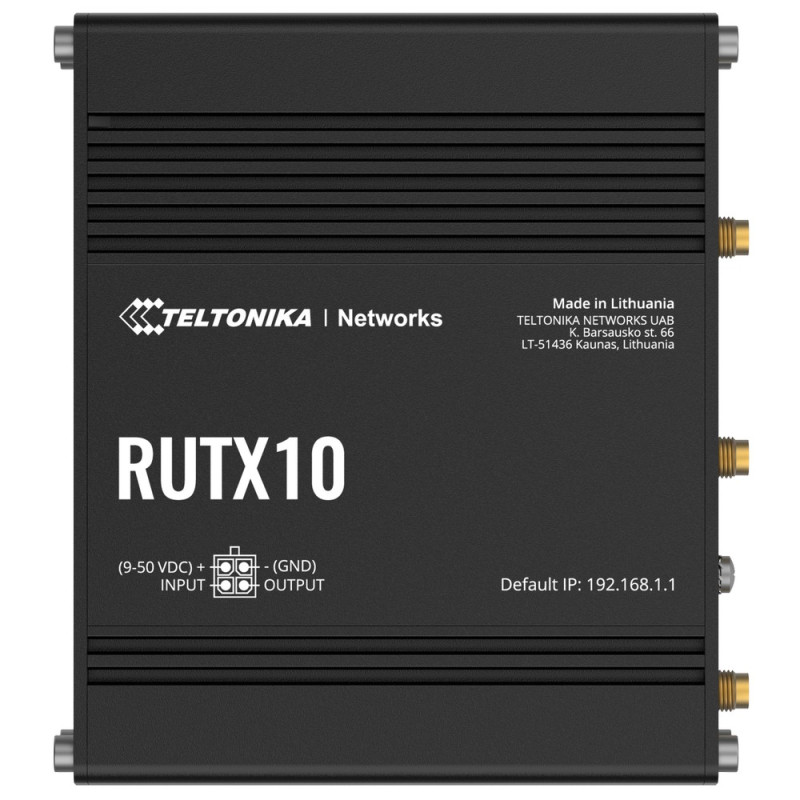

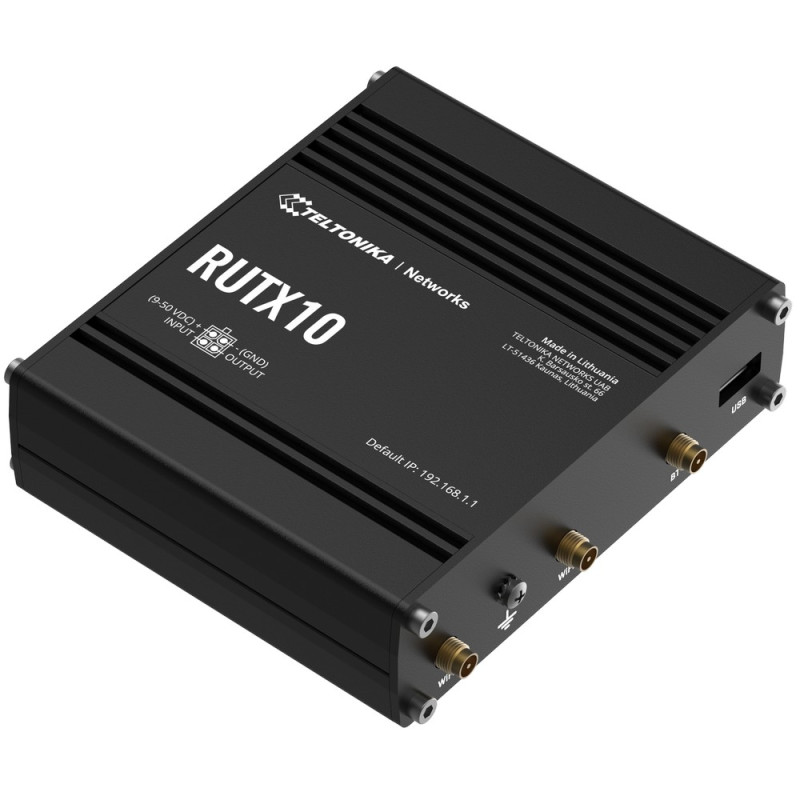

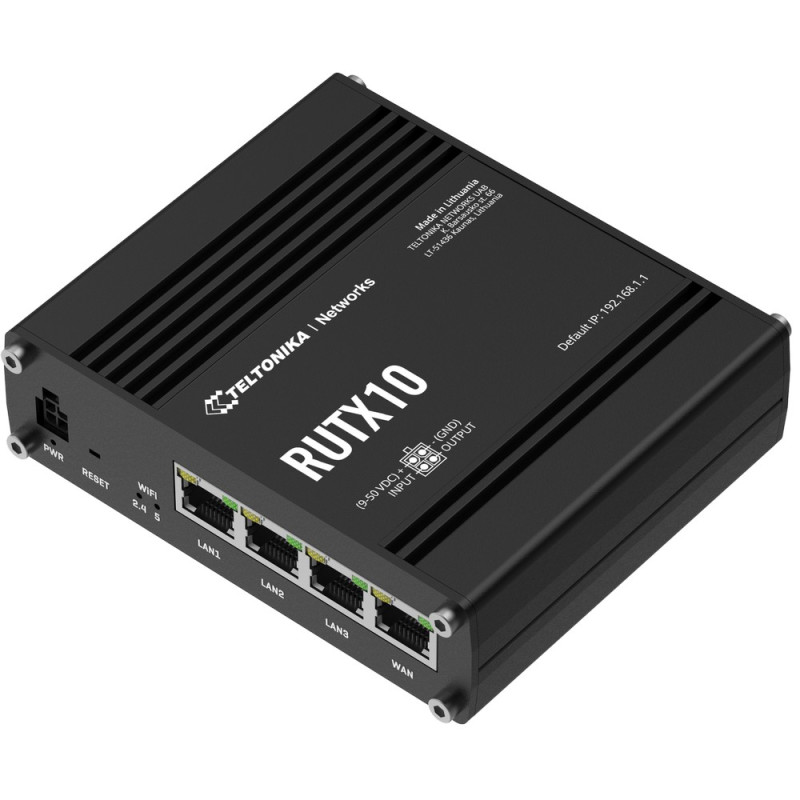

МАРШРУТИЗАТОР TELTONIKA RUTX10

Інтерфейс

Ethernet 4 x RJ45 ports, 10/100/1000 Mbps I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector Status LEDs 8 x LAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs Power 1 x 4-pin power connector Antennas 2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth USB 1 x USB A port for external devices Reset Reboot/User default reset/Factory reset button Other 1 x Grounding screw

Вага

355

Живлення

Connector 4-pin industrial DC power socket Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC Power consumption 9 W Max

Розміри

115 x 32.2 x 95.2 мм

Умови роботи / Корпус

Operating temperature -40 °C to 75 °C Operating humidity 10% to 90% non-condensing Ingress Protection Rating IP30

ETHERNET

WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

VPN

OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) GRE GRE tunnel, GRE tunnel over IPsec support PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code DMVPN Method of building scalable IPsec VPNs SSTP SSTP client instance support ZeroTier ZeroTier VPN client support WireGuard WireGuard VPN client and server support Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support. Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

Безпека

SSL certificate generation Let's encrypt support 802.1x Port-based network access control client Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN Port and tag-based VLAN separation WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control Flexible access control of SSH, Web interface, CLI and Telnet

Мережа

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Port forward, traffic rules, custom rules Firewall status page View all your Firewall statistics, rules, and rule counters Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on Network topology Visual representation of your network, showing which devices are connected to which other devices Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS Supported >25 service providers, others can be configured manually DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS Network backup Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover Load balancing Balance Internet traffic over multiple WAN connections SSHFS Possibility to mount remote file system via SSH protocol VRF support Initial virtual routing and forwarding (VRF) support

Мобільний (стільниковий) зв'язок

Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) Wi-Fi security WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect SSID/ESSID ESSID stealth mode Wi-Fi users Up to 150 simultaneous connections Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) Wireless MAC filter Whitelist, blacklist Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information.

Моніторинг та керування

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status FOTA Firmware update from server, automatic notification SSH SSH (v1, v2) TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT MQTT Broker, MQTT publisher SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection JSON-RPC Management API over HTTP/HTTPS RMS Teltonika Remote Management System (RMS)

Системні характеристики

CPU Quad-core ARM Cortex A7, 717 MHz RAM 256 MB, DDR3 FLASH storage 256 MB, SPI Flash
